10-Inch Car Subwoofers Compared: JL Audio, Kicker, Alpine and Focal

A 10 fits smaller boxes than a 12. For a first sub on a modest amp, look at the Alpine W10S4, Kicker 50CWCD104 or 52CVR104, or JL Audio 10W0v3 and 10W1v3. For a truck cab or under a seat, pick a shallow 10: the JL Audio 10TW3-D4 and Alpine RS-W10D4 mount 3.25 inches deep, and the Kicker 48CWRT104 and 46L7T104 need 3-7/16 and 3-3/4 inches. For more output, step up to the Kicker 50CVX104 or 44L7S104, the Alpine S2-W10D4 or R2-W10D4, or the JL Audio 10W3v3 and 10W6v3. At the top are the JL Audio 10W7AE, the Alpine HDZ-W10 and the Kicker L7X.

Car audio · · DJ Custom Audio, South Gate

What to compare

A component sub is the driver alone, so it needs a box and a mono amp. Match the sub's RMS power to the amp, wire the voice coils to a load the amp handles, and use the box size the maker recommends. For a ready-made box, see our loaded subwoofer enclosure comparison, and for a bigger driver, our 12-inch subwoofer comparison.

Every sub here is on our listings. We are an authorized JL Audio, Kicker, Alpine and Focal dealer, and Tony installs subs in our own bay at 8696 Atlantic Ave in South Gate.

Side by side

This table is built only from our own product listings. Where a listing does not state a spec, the cell says so instead of guessing.

Power is RMS as each maker rates or recommends it. Sensitivity is as the listing gives it, and a higher number plays a little louder on the same power.

10-inch component car subwoofers compared, from our product listings. "Not in our listing" means our product page does not state that spec, so ask us before you count on it.

ModelVoice coilsPower (RMS)SensitivityMounting depthBox per the listing
Alpine W10S4Single 4 ohm250 WNot in our listingNot in our listing0.83 cu ft sealed or 1.51 cu ft ported
Kicker 50CWCD104Dual 4 ohm125-250 W recommended85.2 dB5-3/16 in1-2.4 cu ft sealed or 1.25-1.75 cu ft vented

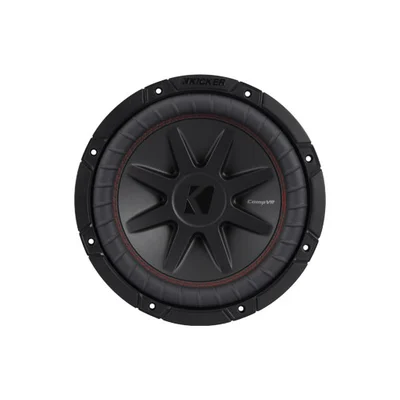

Kicker 52CVR104Dual 4 ohm180-375 W recommended83.6 dB5-1/2 in0.8-3 cu ft sealed or 1.25-1.75 cu ft vented

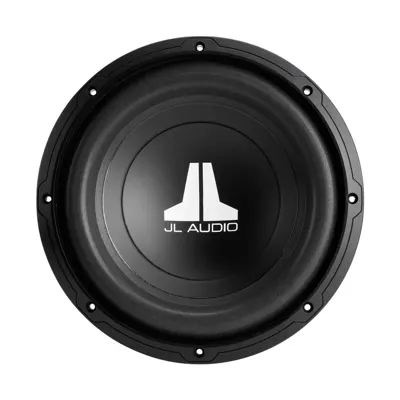

JL Audio 10W0v3-4Single 4 ohm300 W84.07 dB4.90 in0.65 cu ft sealed or 1.125 cu ft ported
JL Audio 10W1v3-4Single 4 ohm300 W84.2 dB4.6 in0.55 cu ft sealed
Alpine SWT-10S4Single 4 ohm350 WNot in our listing4-3/16 inVery small sealed
JL Audio 10TW1-4Single 4 ohm300 W82.2 dB4.36 in0.35 cu ft sealed

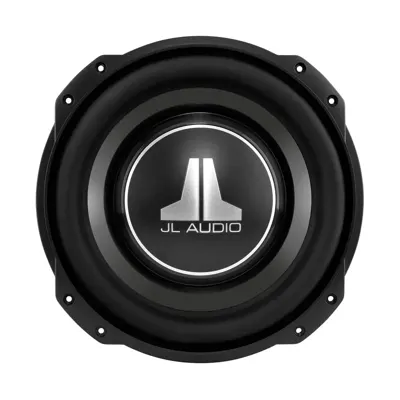

JL Audio 10TW3-D4Dual 4 ohm400 W82.10 dB3.25 inNot in our listing

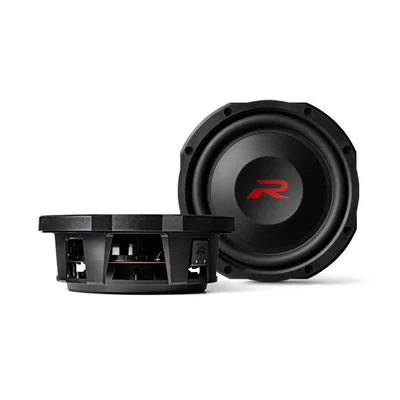

Alpine RS-W10D4Dual 4 ohm600 WNot in our listing3.25 inNot in our listing

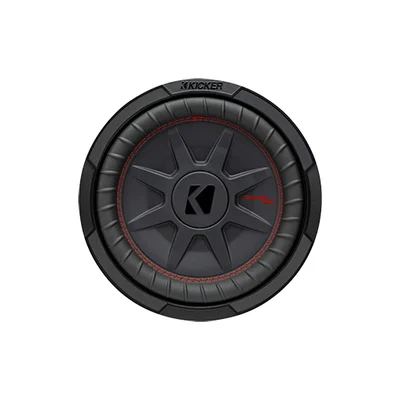

Kicker 48CWRT104Dual 4 ohm400 W84.8 dB3-7/16 in0.4-1.25 cu ft sealed or 1.25-1.75 cu ft vented
Kicker 46L7T104Dual 4 ohm500 W86.0 dB3-3/4 in0.4-1.0 cu ft sealed or 1.25-1.75 cu ft vented

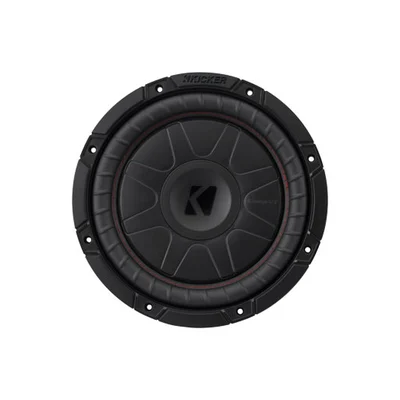

Kicker 52CVT104Single 4 ohm180-375 W recommended87.2 dB4-1/4 in0.8-3 cu ft sealed or 1.25-1.75 cu ft vented
Focal SUB 10 WMDual 4 ohm400 W87.5 dBAbout 4.25 inSmallest sealed 0.35 cu ft

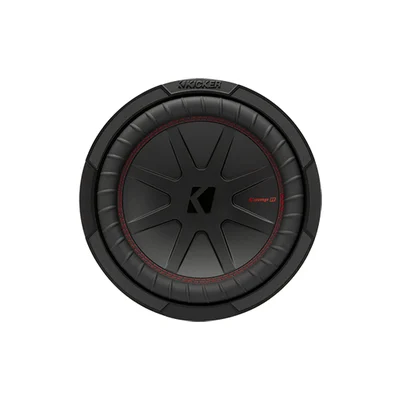

Kicker 48CWR104Dual 4 ohm400 W84.6 dB5-1/4 in0.8-1.25 cu ft sealed or 1.25-1.75 cu ft vented

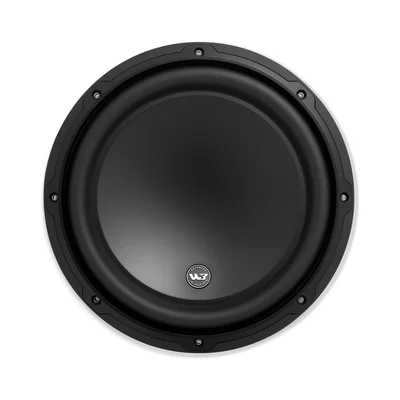

JL Audio 10W3v3-4Single 4 ohm500 W84.9 dB5.93 inAbout 0.625 cu ft sealed or 1.125 cu ft ported

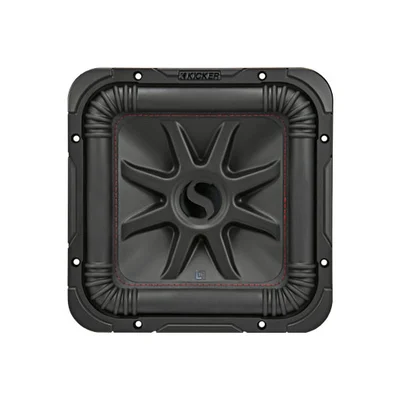

Kicker 45L7R104Dual 4 ohm500 W85.9 dB6-1/8 in0.66-1 cu ft sealed or 1.25-2.25 cu ft vented

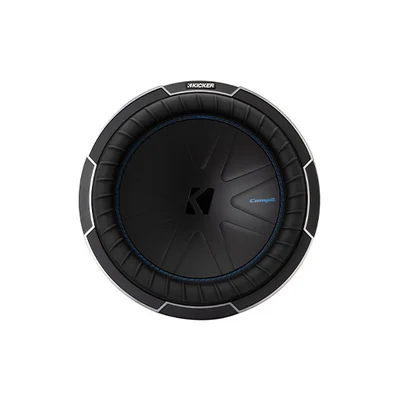

Kicker 51CWQ104Dual 4 ohm400-800 W recommended84.5 dB6-3/8 inSmallest sealed 0.66 cu ft
Alpine S2-W10D4Dual 4 ohm600 W84.9 dBNot in our listingSealed or ported

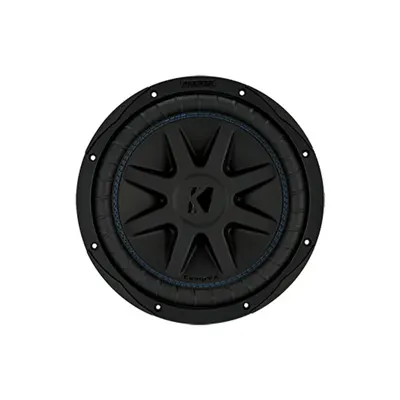

Kicker 50CVX104Dual 4 ohm600 W85.7 dB5-15/16 in0.8-3.0 cu ft sealed or 1.25-1.75 cu ft vented

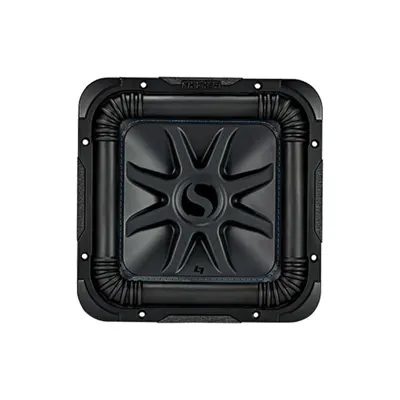

Kicker 44L7S104Dual 4 ohm600 W86.8 dB6-1/4 in1.0-1.25 cu ft sealed or 1.25-2.25 cu ft vented
JL Audio 10W6v3Not in our listing600 W82.7 dB6.89 inAbout 0.55 cu ft sealed or 0.75 cu ft ported
Alpine R2-W10D4Dual 4 ohm750 W82.4 dB6 inNot in our listing

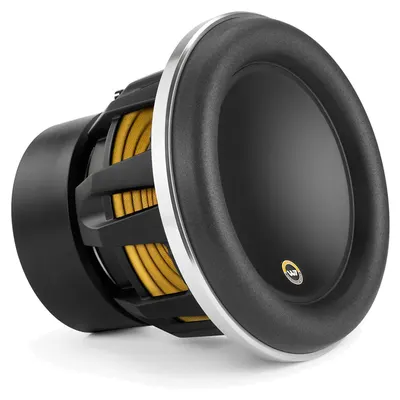

JL Audio 10W7AE-3Single 3 ohm750 W84.3 dB8.0 inSealed or ported
Alpine HDZ-W10Not in our listing800 WNot in our listing7-7/16 inNot in our listing

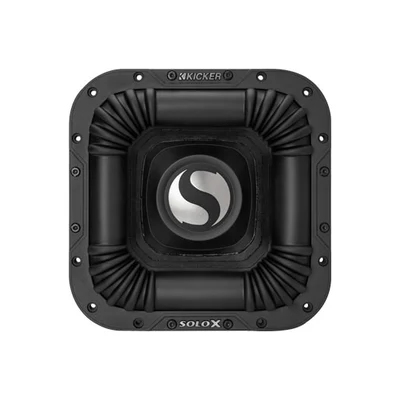

Kicker 49L7X102Dual 2 ohm1,000-2,000 W recommendedNot in our listing9-7/16 in2 cu ft vented, tuned to 31 Hz

Budget 10s for a first sub

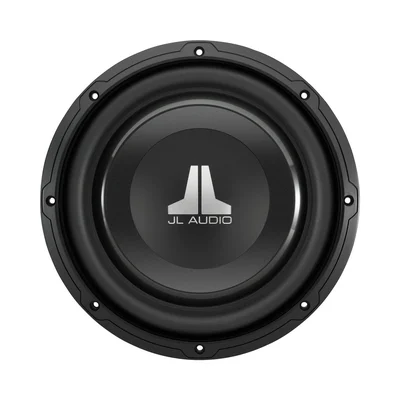

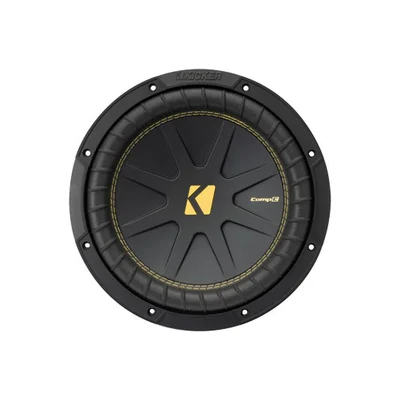

The Alpine W10S4 handles 250 W RMS on a single 4-ohm coil in a 0.83 cu ft sealed or 1.51 cu ft ported box. Kicker recommends 125 to 250 W RMS for the CompC 50CWCD104 and 180 to 375 W RMS for the CompVR 52CVR104. The JL Audio 10W0v3 and 10W1v3 handle 300 W RMS, and JL's sealed box plan for the 10W1v3 is just 0.55 cu ft.

Shallow 10s for trucks and tight spaces

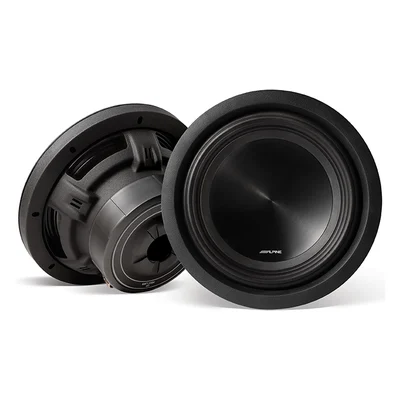

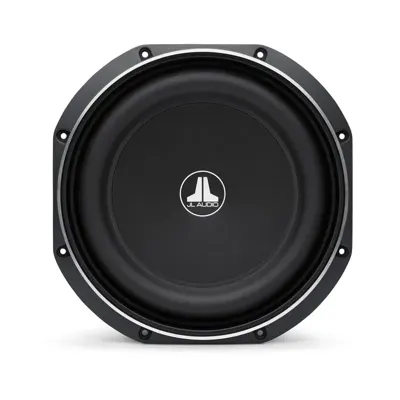

The JL Audio 10TW3-D4 and Alpine RS-W10D4 mount only 3.25 inches deep, at 400 W and 600 W RMS. The Kicker 48CWRT104 needs 3-7/16 inches and the 46L7T104 square sub 3-3/4 inches. The Alpine SWT-10S4 needs 4-3/16 inches and is built for very small boxes, and the JL Audio 10TW1-4 needs 4.36 inches in a 0.35 cu ft sealed box.

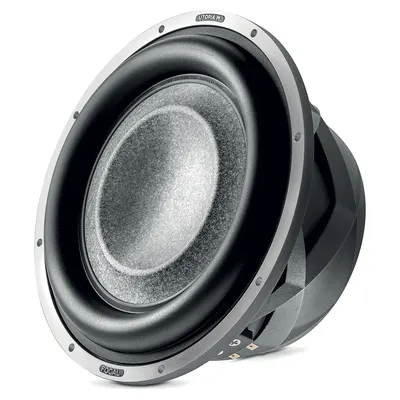

The Focal SUB 10 WM from the Utopia M line needs about 4.25 inches and a sealed box as small as 0.35 cu ft, with 87.5 dB sensitivity, the highest in our table. Measure the space, then text us a photo so Tony can confirm the box will fit.

Mid-power and high-power 10s

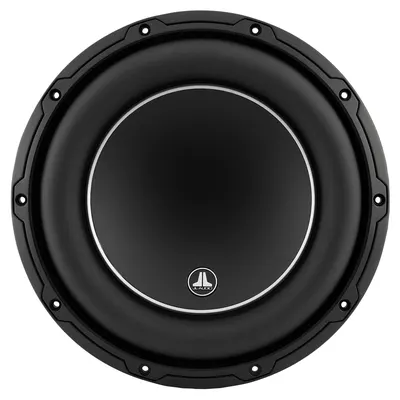

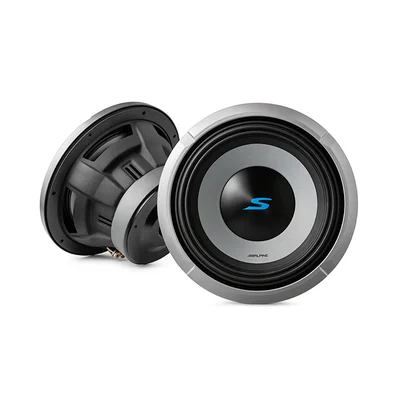

The Kicker 48CWR104 handles 400 W RMS, and the JL Audio 10W3v3-4 and Kicker 45L7R104 square sub handle 500 W RMS. The Kicker 50CVX104 and 44L7S104, the Alpine S2-W10D4 and the JL Audio 10W6v3 handle 600 W RMS, and the Kicker 51CWQ104 takes 400 to 800 W RMS.

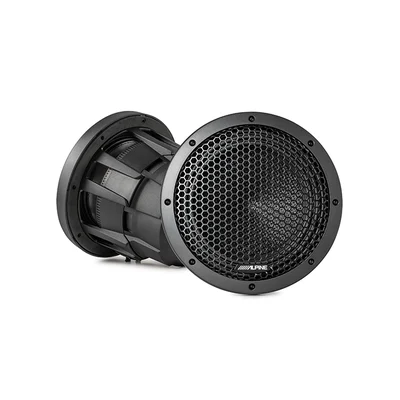

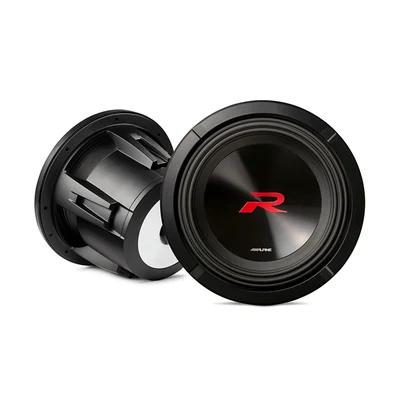

At the top, the Alpine R2-W10D4 and JL Audio 10W7AE-3 handle 750 W RMS, the Alpine HDZ-W10 800 W RMS, and the Kicker L7X 49L7X102 calls for 1,000 to 2,000 W RMS in a 2 cu ft vented box tuned to 31 Hz. Pair any of these with a mono amp from our mono subwoofer amplifier comparison.

How to choose, and how to get one

Start with the space and the amp: pick a shallow 10 if depth is tight, then match RMS power and impedance to the mono amp. Text (213) 674-9042 with your year, make and model and a photo of the trunk or cab, and Tony will tell you what fits.

Everything is bought and installed or picked up at the shop at 8696 Atlantic Ave in South Gate, and you can ask about our Payment Plan. Stock moves, so call (323) 944-7844 to confirm the sub is on the floor before you drive over.
