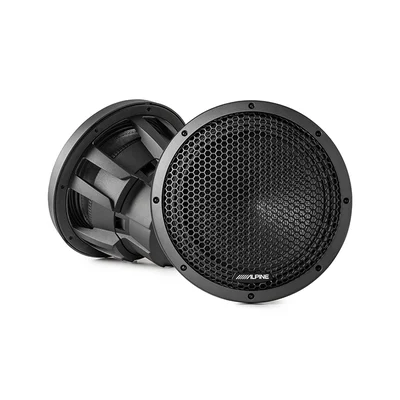

Alpine Status HDZ-W12 12-inch Subwoofer

Component subwoofer · Model HDZ-W12

  • 12-inch driver
  • 800W RMS / 2400W peak
  • 24Hz-200Hz response
Alpine Status HDZ-W12 12-inch Subwoofer

$749.95

Call or text to confirm it is on the wall before you drive over.

Buy Now, Pay Later: 100 days same as cash, or up to one year with Synchrony. Approval and terms set by the provider. See the Payment Plan

  • Local pickup Cash & Carry at our South Gate shop
  • Payment Plan Buy Now, Pay Later
  • Installed here Tony installs it in our bay
  • Se habla español ask for Tony

What it is

Alpine Status 12-inch sub with a triple-stacked motor and cast aluminum frame. Special orders welcome.

The Alpine Status HDZ-W12 is a 12-inch subwoofer from Alpine's flagship Status line. It handles 800W RMS and 2400W peak, with a recommended power range of 400-800W RMS and a 24Hz-200Hz response. The cone combines a pulp-mica body with a carbon fiber dust cap, driven by triple-stacked strontium ferrite magnets and a 2.6-inch voice coil for 20mm of linear excursion. Dual progressive spiders, a H.A.M.R. surround and a cast aluminum frame with an aluminum trim ring round it out. Mounting depth is 7-3/8 inches.

Pickup is at the South Gate shop. Call to confirm it is on the wall before you drive.

Specs

BrandAlpine
ModelHDZ-W12
TypeComponent subwoofer
Size12 in
Features
  • 12-inch driver
  • 800W RMS / 2400W peak
  • 24Hz-200Hz response
  • 20mm linear excursion

Guides and comparisons

  • 12-Inch Car Subwoofers Compared: JL Audio, Kicker, Alpine and FocalFor a first sub on a modest amp, look at the Alpine W12S4, Kicker 50CWCD124 or JL Audio 12W0v3. For a truck cab or a box behind the seat, pick a shallow sub like the JL Audio 12TW1 or 12TW3, the Alpine RS-W12D4 (3.25 inches deep) or the Kicker 46L7T124 or 52CVT124. For more output in a trunk, step up to the Kicker 48CWR122, JL Audio 12W3v3 or Alpine S2-W12D4. At the top are the JL Audio 12W6v3 and 12W7AE, the Alpine HDZ-W12, the Focal SUB 30 KXE and the Kicker L7X and L7XS, which need a big mono amp.

Pairs well with

Pick it up in South Gate

Tony can hold it at the counter. You pick it up here.

Open the map

More Component Subwoofers

Alpine Status HDZ-W12 12-inch Subwoofer: questions

Will it fit my car?

Bring the year, make, and model. Tony checks fit at 8696 Atlantic Ave before anything goes in the car. Call to confirm this piece is on the shelf.

Can I buy it on this page?

No. Call (323) 944-7844, text (213) 674-9042, or email djcustomaudio2@gmail.com. Pickup is at the shop.

Is a Payment Plan available?

Buy Now, Pay Later: 100 days same as cash, or up to one year with Synchrony. Approval and terms set by the provider. Call or stop by to apply.
